AlphaVision FS multi-line LED message center

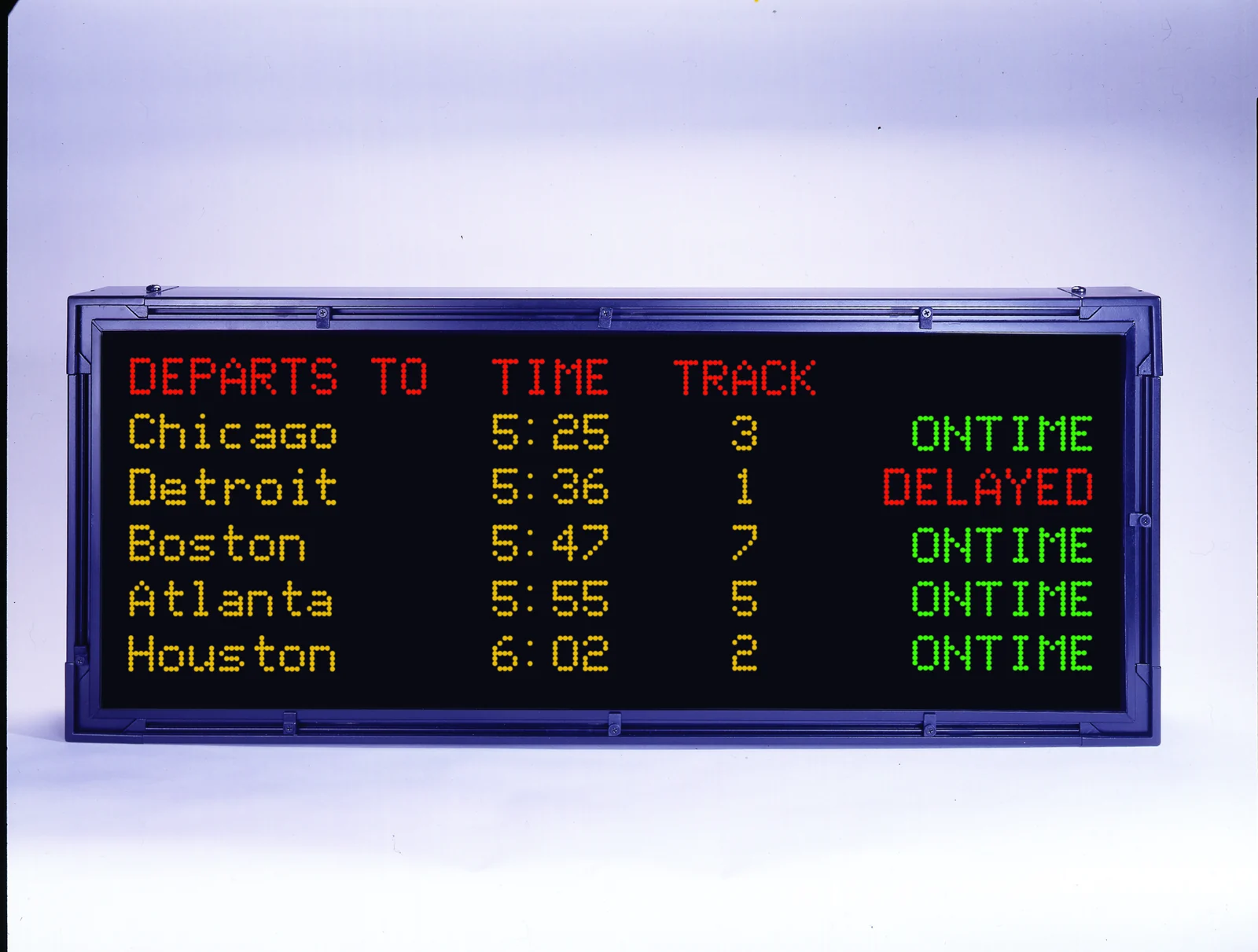

The AlphaVision FS (Front Serviceable) shows multiple lines of text in red, green and amber. Once mounted, the signs are serviced from the front, without removing the display. Available in over 96 models, from 4 lines of 32 characters to 12 lines of 48 characters. Ideal for departure times, production data, alarms and visitor information.
Still supported for software and repairs.
Legacy model, no longer available as new. Current alternative: Alpha 9000 RGB
Product information AlphaVision FS
Display
| Type | Multi-line tricolor character matrix |
|---|---|
| Number of lines | 4 - 12 |
| Characters per line | 24 - 48 |
| Character height | 1.4" (3.5 cm) or 2.1" (5.3 cm) |
| Pixel color | Red, green or amber (tricolor); also red or super-bright red |
| Pixel diameter | 0,2" (0,5 cm) |
| Pixel pitch | 0.3" (0.8 cm) for 2.1" characters; 0.2" (0.5 cm) for 1.4" characters |
Messages and operation
| Message capacity | 81 messages |
|---|---|
| Display modes | Hold, wipe (six directions), flash, five speeds |
| Real-time clock | Date/time (12/24-hour), up to ~30 days without power |
| Memory retention | Typically one month |
Control
| Serial interface | RS232 + RS485 (multi-drop / 255) |
|---|---|
| Network option | Ethernet (Ethernet Adapter Box) |
| Protocol | Alpha protocol, compatible with Adaptive software |
Power and enclosure
| Power | 100-132 VAC / 200-252 VAC, autoranging |
|---|---|
| Enclosure | Extruded aluminium, fully front serviceable |
| Mounting | Ceiling and wall mounting |
| Operating temperature | 0 - 60 °C |
| Humidity | 0-95% non-condensing |
Approvals and warranty
| Approvals | ANSI/UL 1950, CAN/CSA, EN 60950, FCC Part 15 Class A, CE |
|---|---|
| Warranty | One year (parts and labor) |
Dimensions
| Models | Over 96 models |
|---|---|
| Case (1.4" characters, w×h×d) | 109,7 - 158,5 × 44,8 - 78,3 × 12,1 cm |
| Case (2.1" characters, w×h×d) | 123,9 - 233,6 × 62,3 - 95,8 × 12,1 cm |

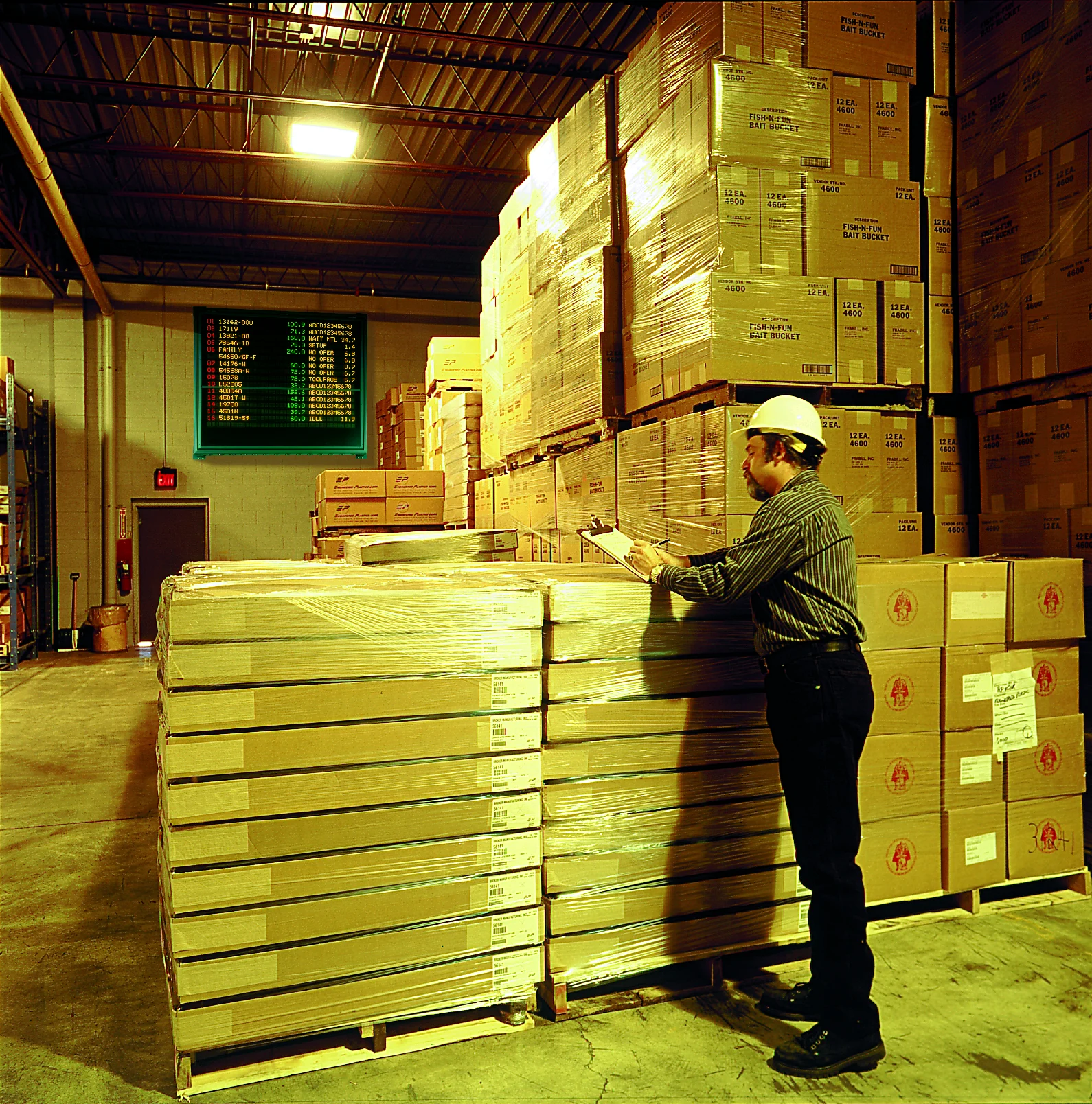

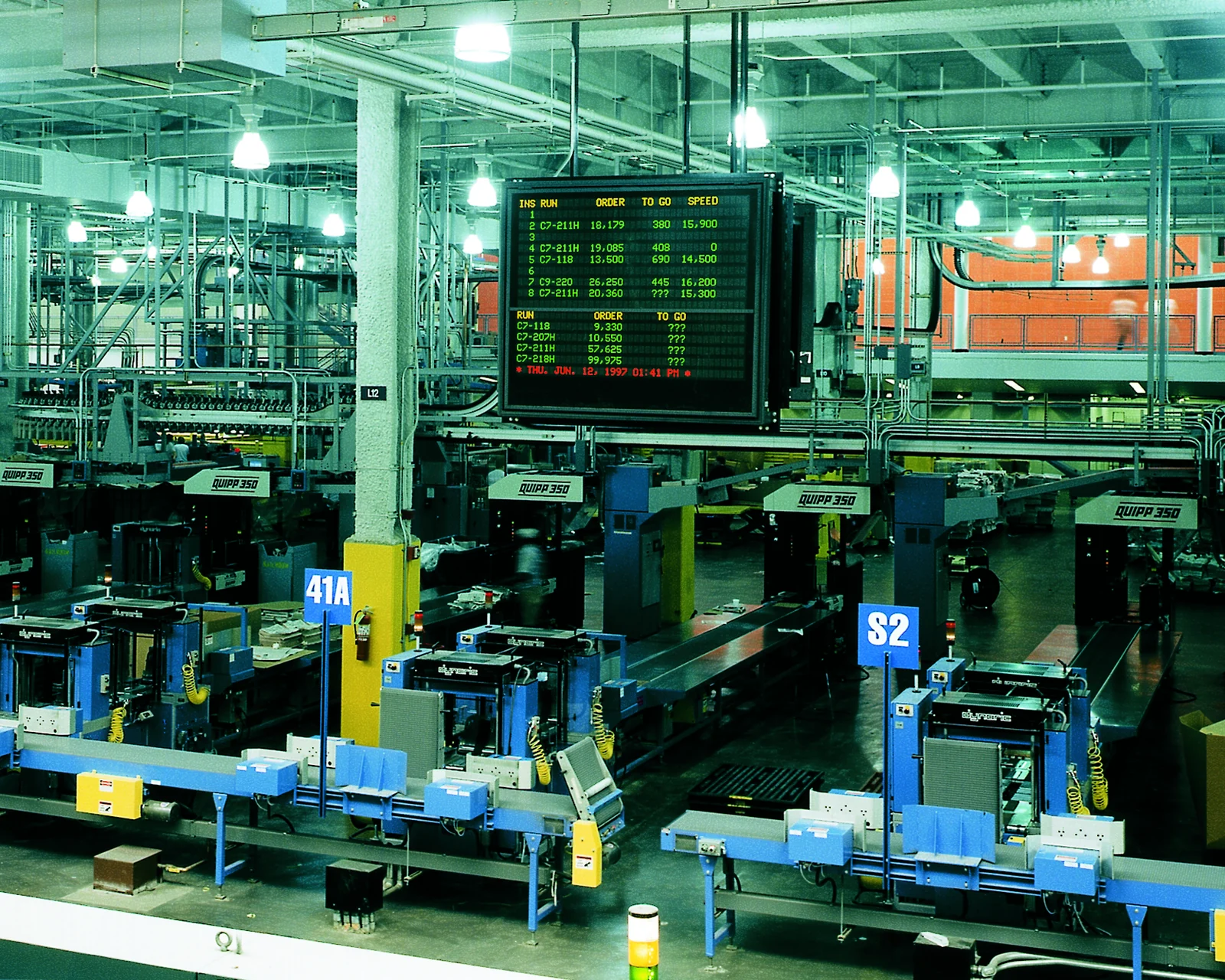

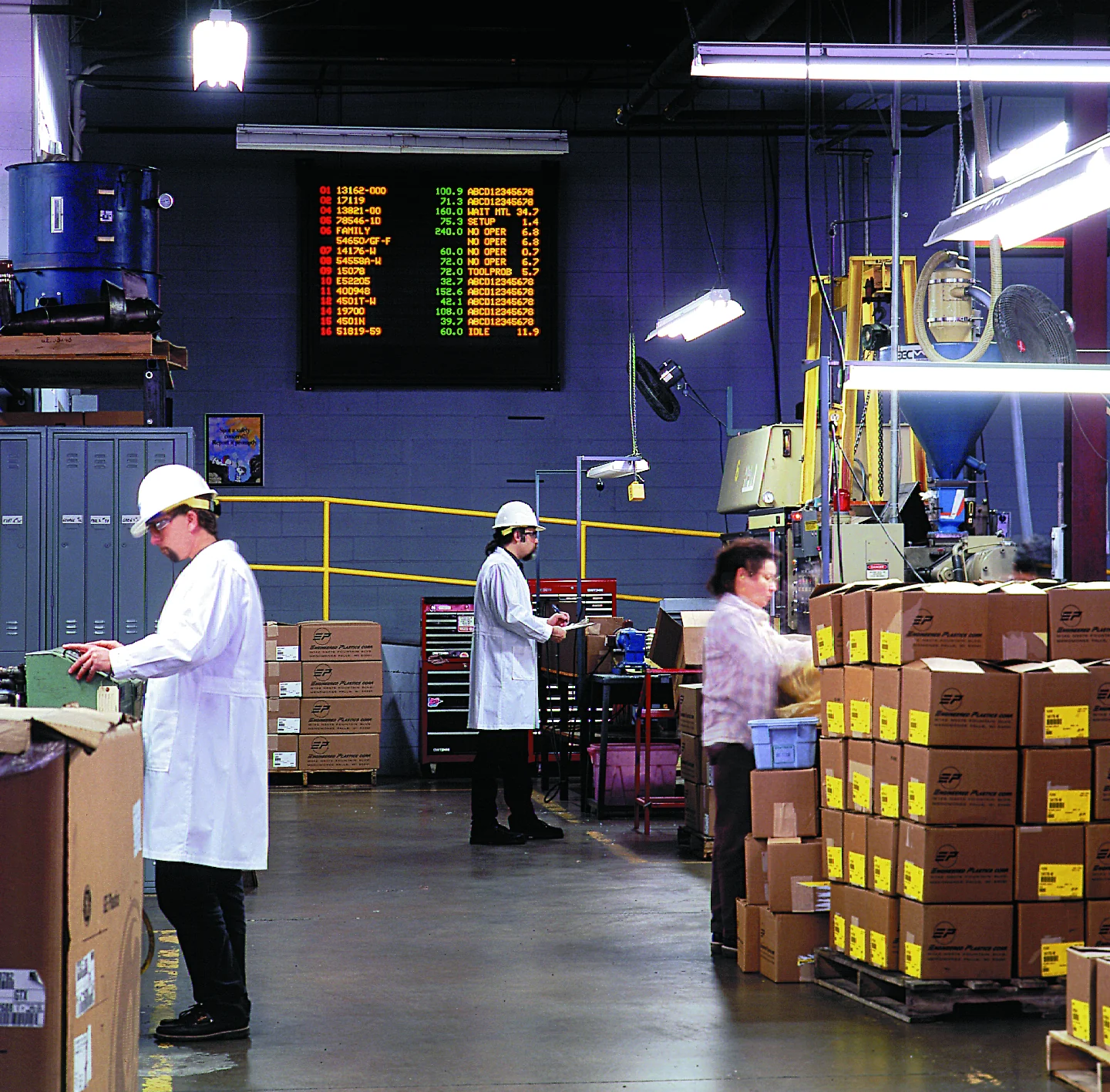

Photos
Frequently asked questions
What does front serviceable mean?
The signs and electronics are serviced from the front. After mounting, the display does not need to be removed for service.
Which colors does the AlphaVision FS show?
Each pixel can show red, green or amber (tricolor). The model is also available in red or super-bright red.
How many lines and characters are possible?
From 4 lines of 32 characters to 12 lines of 48 characters, in over 96 models, with character height 1.4" (3.5 cm) or 2.1" (5.3 cm).
